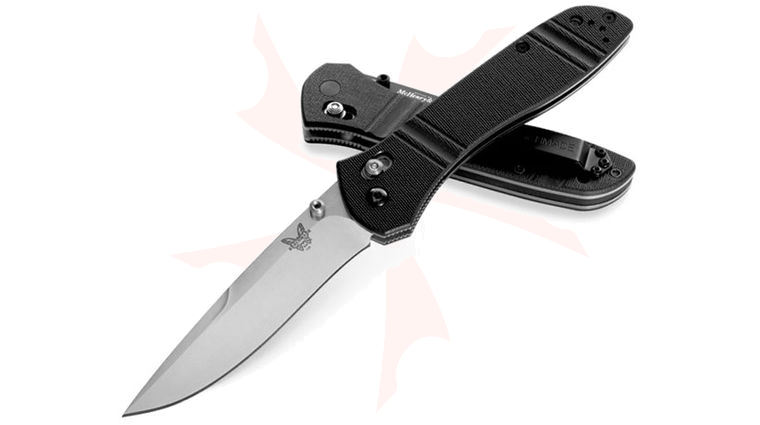

Benchmade 710 McHenry & Williams 3.90" Satin D2 Plain Blade, G10 Handles, AXIS/Crossbar Lock - 710D2

BM710D2: 710 - (McHenry & Williams)

Benchmade

Model 710 was designed by custom knife makers Bill McHenry and Jason Williams and premiers Benchmade's patented AXIS™ lock which was also designed by Bill and Jason. It looks simple enough, and it is, but it's the end result of a lot of hard work and perseverance by Bill and Jason, over the course of 4 years. The AXIS™ lock is totally ambidextrous and allows for easy one-handed opening and closing of the blade without your fingers ever being in the path of the blade. The design is very intuitive to operate with little or no instruction needed on how the lock functions.

As simple as the lock is, perhaps its biggest selling feature is its brute strength. In testing, the lock supported a negative load of over 200 pounds without damage. When the lock does finally fail, the liners simply crack over the locking pin, but at no time in Benchmade's testing would the blade have closed on the users hand. The AXIS™ lock features two "Omega" shaped springs that provide outstanding functional redundancy. The springs are lightly stressed and our tests show they should last indefinitely. In the unlikely event that one of the springs does fail, the other will still operate the knife just fine.

Is this the strongest lock made? That's very difficult to say for certain. Benchmade claims that i's certainly more rugged than many of the typical lock-back and liner-locking knives. The sizable 3.90" D2 Tool Steel blade of the 710 features a reverse-curve grind for increased cutting ability. The double liners are heat-treated 420 stainless steel as is the locking-bar. There is a removable, stainless steel pocket-clip located on the butt end of the knife. This given clip location on the butt end is necessary due to the locking mechanism. If the clip were positioned on the pivot end, the knife would protrude much too far out of your pocket.

Features

• Reverse Curve Blade Shape
• Larger Sized Folder
• D2 Tool Steel Blade
• Machined G10 Handle Scales
• Country of Origin: USA

Specifications

• Blade Length: 3.90"
• Blade Thickness: 0.115"
• Blade Material: D2 Tool Steel
• Blade Hardness: 59-61HRC
• Blade Style: Modified Clip-Point; Ambidextrous Dual Thumb Studs
• Weight: 4.50oz.
• Clip: Black, Reversible, Tip-Up
• Lock Mechanism: AXIS
• Overall Length: 8.80"
• Closed Length: 4.90"

AXIS® A patented Benchmade exclusive, AXIS has been turning heads and winning fans ever since its introduction. A 100-percent ambidextrous design, AXIS gets its function from a small, hardened steel bar which rides forward and back in a slot machined into both steel liners. The bar extends to both sides of the knife, spanning the liners and positioned over the rear of the blade. It engages a ramped, tang portion of the knife blade when it is opened. Two omega style springs, one on each liner, give the locking bar it’s inertia to engage the knife tang, and as a result the tang is wedged solidly between a sizable stop pin and the AXIS bar itself.
